Mini Solar Home Lighting System Kit with battery

Solar Small System generation power is a clean, renewable energy solution that uses solar panels to provide electricity for households. It is mainly composed of a solar panel, a solar battery,drop lamp,which are suitable for remote towns, rural areas,the residential limited power access.

Technical Information:

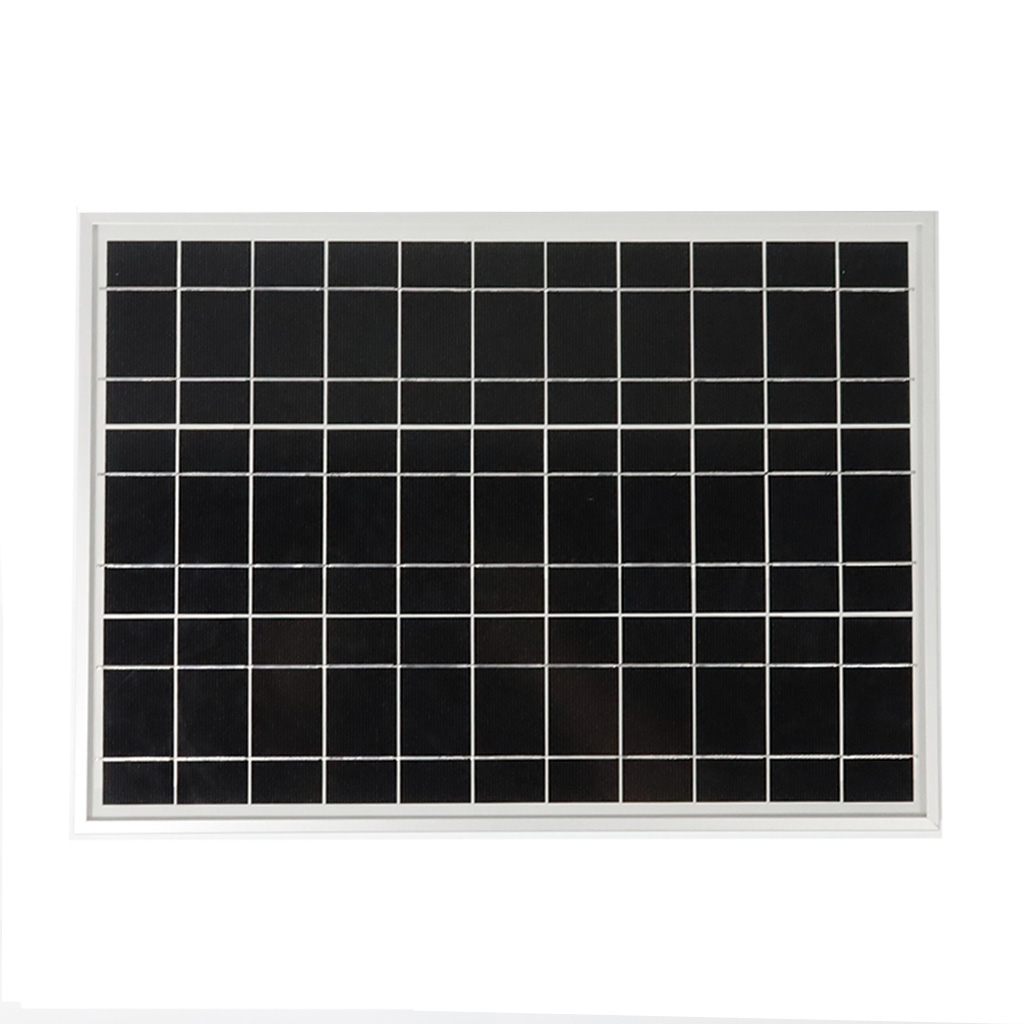

Solar Panle :	monocrystaline 16Wp @ 18V
MPPT technology for optimized charge efficiency
Solar Panel Cable:	6M anti-UV cable
Open Circuit Voltage:	22.5V ± 5%
Short Circuit Current:	1A ± 5%
Brightness (3 drop lamp total)/ Run time

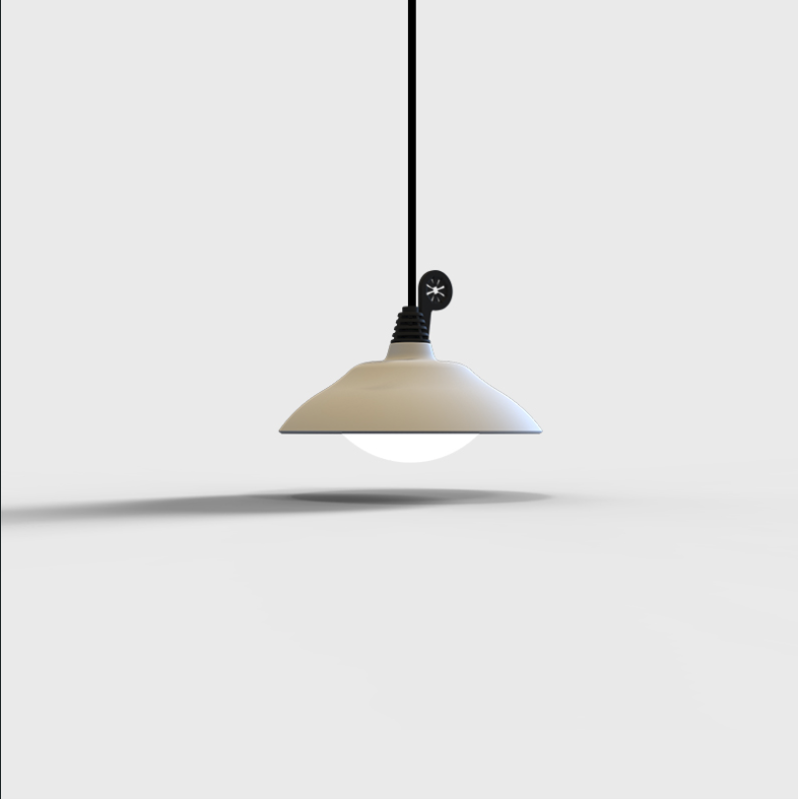

Light Source:	Bulb*3  with 5M cable
Light  setting:	3 level Low:         150lm     28h+ Midium:   450lm     10h+ High:       900lm      5h+
	Phone charging will reduce the run time of the produts light
Battery Type/Capacity：	LifePO4  51Wh (4000mAh @12.8V)
Battery Lifespan	5-7 year (2,000 full charge cycles)
Battery Charge Time:	6h (depend on sun condition)
Overcharge Protection:	14.6V ± 0.2	Critical Value:	Min 14.4V, Max 14.8V
Overdischarge Protection:	9.2V ± 0.32	Critical Value:	Min8.88V , Max 9.52V
Input Port :	1* solar port
Output Port:	3*lamp port,  2*USB port,  1*type C port
DC output power
Max output power:	25W
Supports 12V DC output (for compatible accessories) ≤ 24W

Highlight Feature:

JBX50 Solar Home System is devoted to bringing light to the off-grid area and is easy to maintain.

The solar light system kit is portable, easy to install, plug-and-play, can be flexibly scaled down or up,  lights up the lamp, and charges a mobile

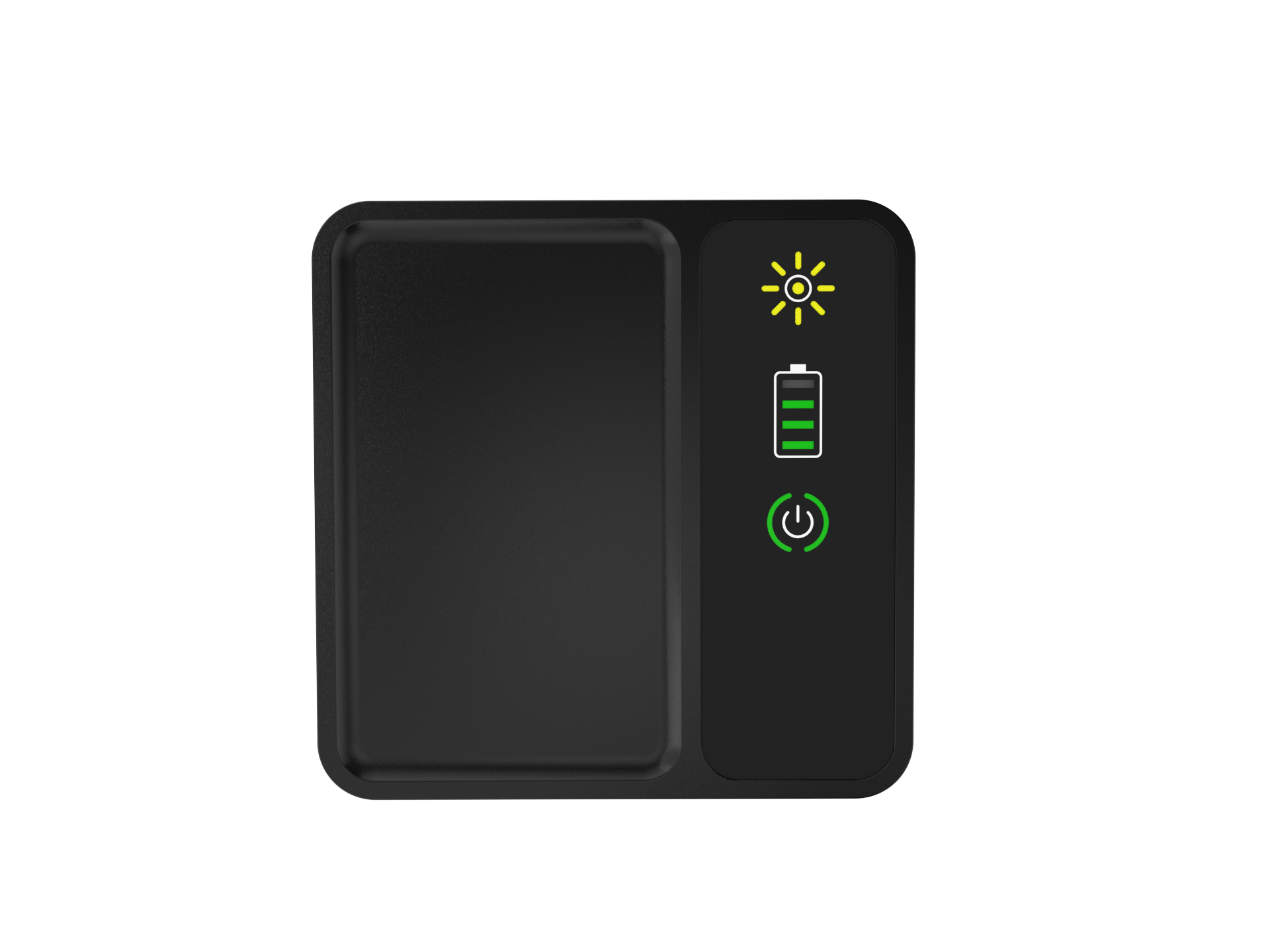

The battery LED indicator display could show the battery charging and discharging status in real-time.

MPPT technology maximizes solar energy conversion efficiency by dynamically tracking the maximum power point.

Solar light kit with battery can  support solar power and the main supply of  electricity two  complementary charging methods.

How to Install:

Step 1: Find a location for the main controller and solar panel

Step 2: Install the solar panel facing the sun

Step 3: Select a solid wall suitable for mounting the bracket, then attach the main controller to the bracket

Step 4: Fix one lamp and insert the plug into the main controller

Step 5: Fix remaining lamps on the wall

Step 6: Mount the cables and switches on the wall,insert the lamp plugs into the main controller.

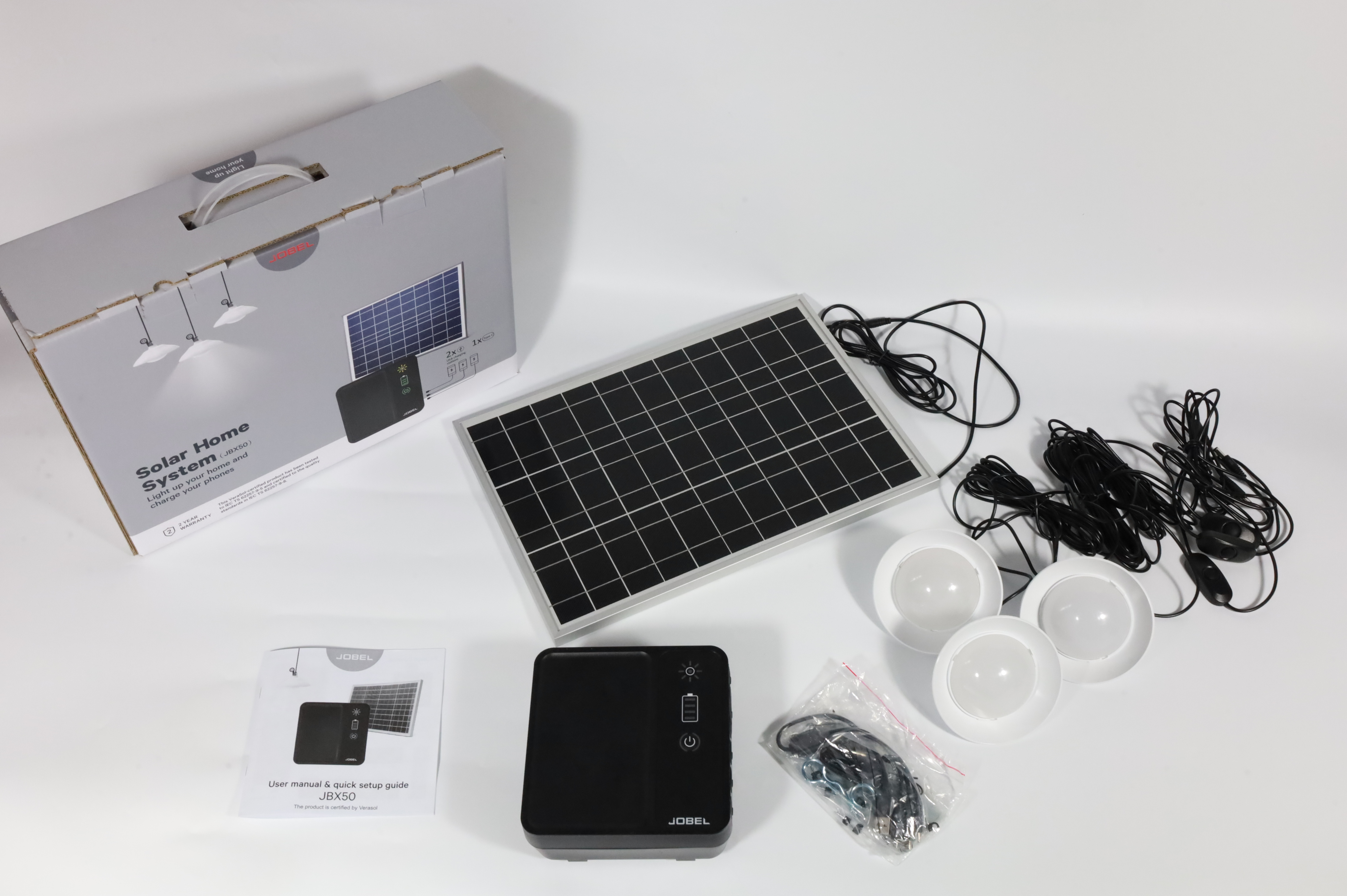

The package content:

Gift box including:

1* solar panel with 6 meter cable

1* main unit with battery

3* drop lamp with 5 meter cable

1* user manual

1* accessories unit

Package:

The product  demo video

How is  E-calling's  Quality Assurance

E-CALLING‍‌‍‍‌‍‌‍‍‌  has obtained several international management system standards, including ISO9001, ISO14000,IATF16949, ISO45001, BSCI, IS26000, and has  production with a strict quality control process  to ensure the product ‍‌‍‍‌‍‌‍‍‌stability and reliability during production.

The most important these solar kits for home lighting have passed the test to IEC TS622257-9-5 and are certified to the quality standard in IEC TS62257-9-8,which provides strong support of dependable quality.
