384Wh Portable Solar Home Energy Storage Lighting Kit

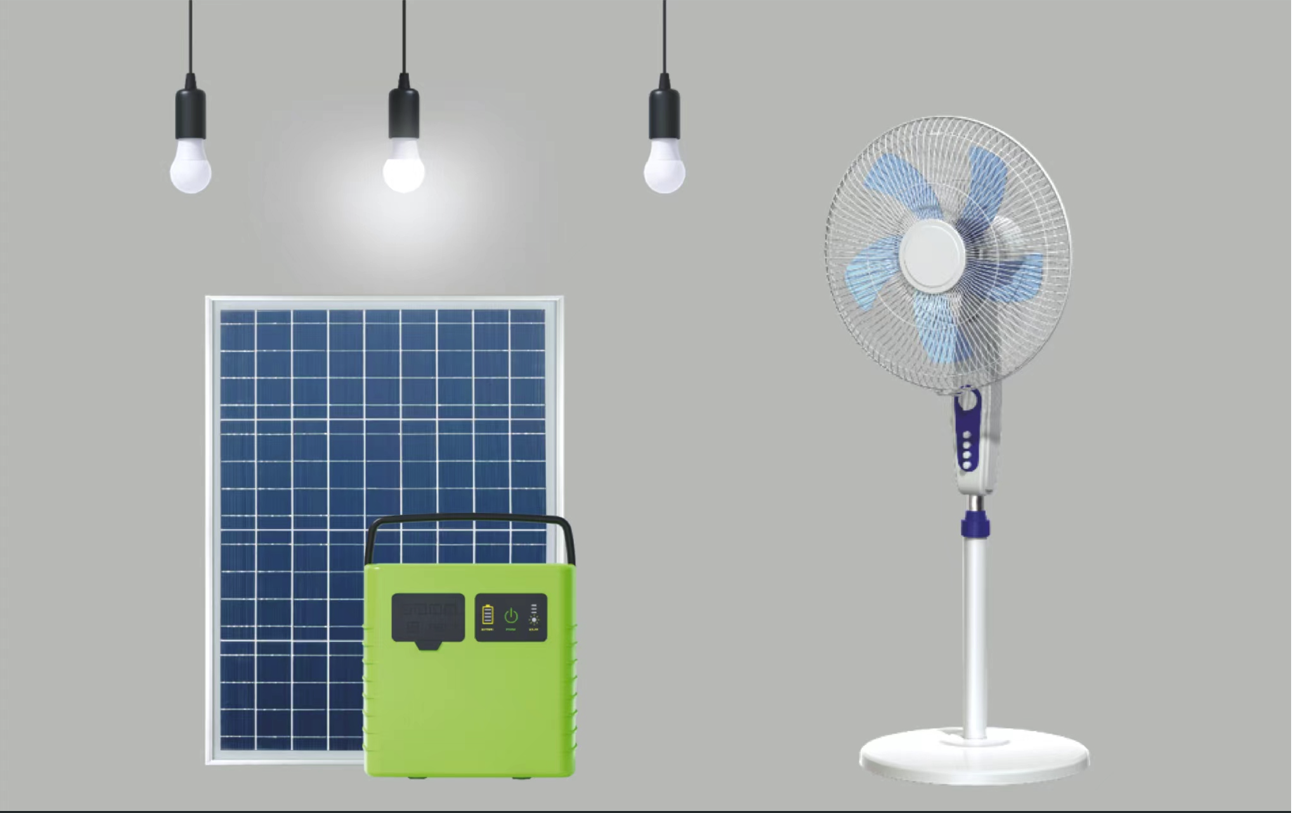

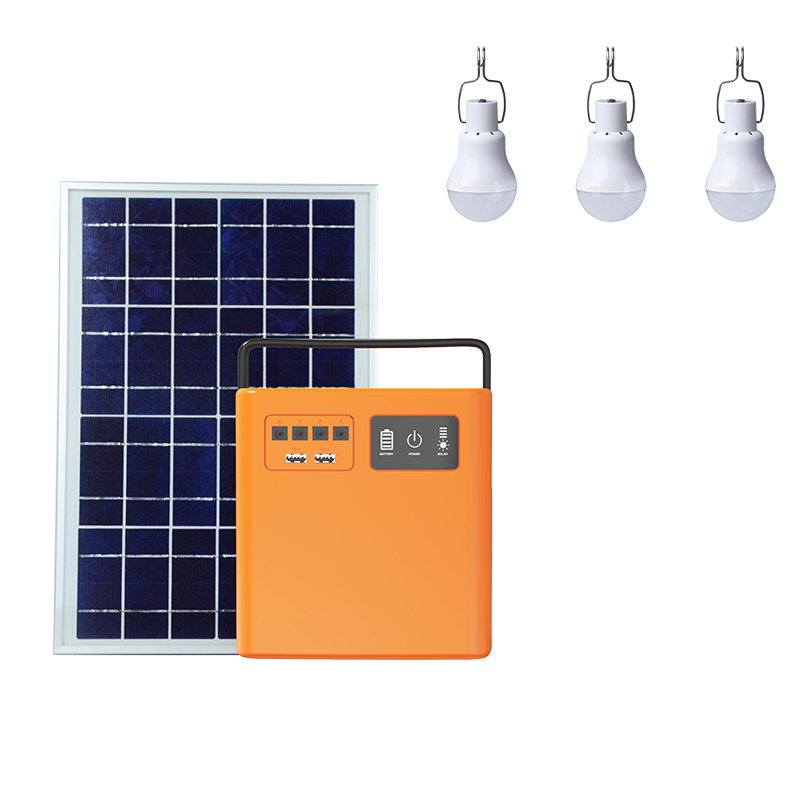

The JB6030 solar home lighting kit, equipped with a 384Wh battery, can meet the power requirements for daily use and entertainment, which  includes a controller unit, solar panel, three bulbs, and an optional fan. The Solar Home Energy Storage System is designed for use in unstable power areas and for use in outdoor applications, such as during recreational vehicle travel,hiking,camping.

Technical Information:

Model no.

Solar Panel

Battery

Nominal Voltage

Drop Lamp

Brightness/Run time

12V Fan

Port

Drop lamp*3 total

main unit front light

High

Medium

Low

High

Medium

Low

JB6030

monocrystaline 120Wp @24V  Charging time: 6+hours

384Wh  30000mAh 5-7 years

12.8V

3

900lm  41h+

450lm  81h+

150lm 215h+

200lm  138h+

100lm  268h+

30lm  750h+

option

1* DC solar port  3*DC lamp port,   2*USB 10W   1*type C 27W

Highlight Feature:

• Long-lasting with a big capacity LiFePO4 battery, solving multi-device operation at the same time.

• Capable of simultaneously illuminating three drop lamps for rooms in the dark without electricity.

• Able to power the TV and fan, enhancing  lifestyle in an off-grid solar home system.

• Waterproof IP65：prevent the aging of the component,extend the usage life,and enhance the flexibility of installation in the outside.

• Emergency power supports daily life when a power cut.

• The battery LED indicator displays  real-time charging and discharging status.

• Folding handle for easy carry.

• MPPT function for solar charging,  to catch the best efficiency.




Application Scenarios:

Handheld Solar Lighting Kits

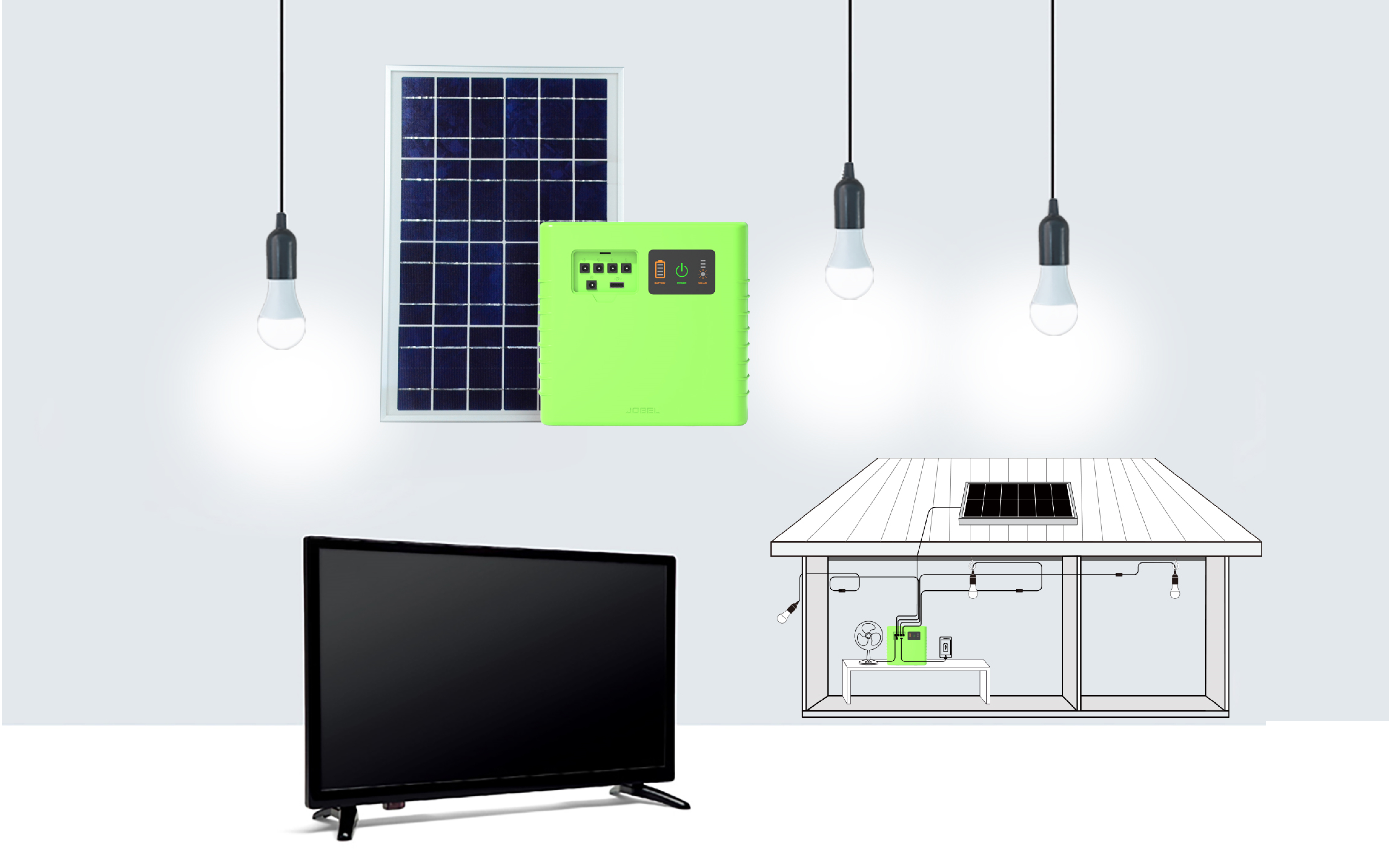

three drop lamps and TV can be working at the same time, powered by the main unit controller.

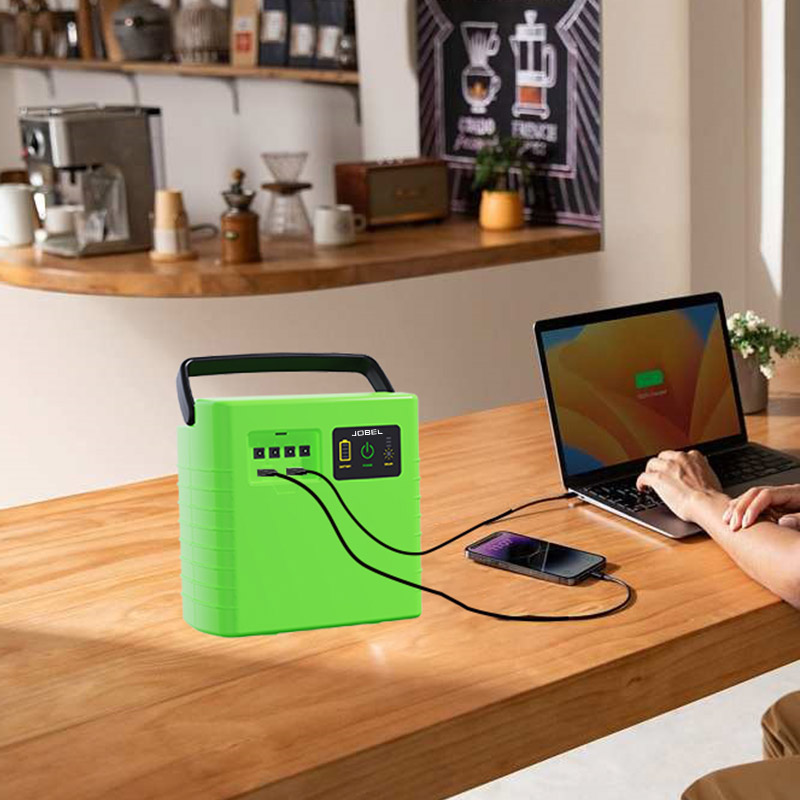

The Solar System could supply power simultaneously  for both the computer and mobile phone,ensuring the work in the office will not be interrupted by a power cut.

How is  E-calling's  Quality Assurance

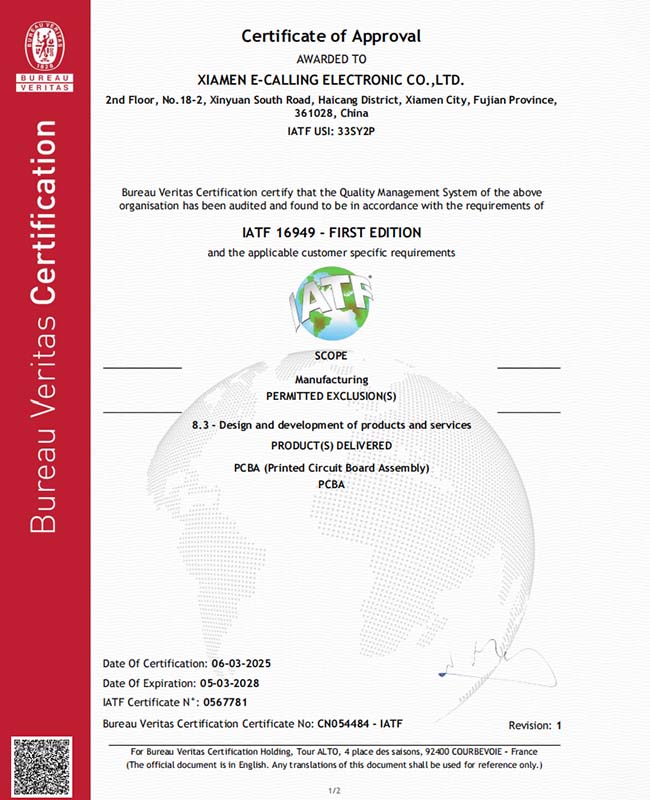

E-CALLING‍‌‍‍‌‍‌‍‍‌  owns several international management system standards such as ISO9001, ISO14000,IATF16949, ISO45001, BSCI, IS26000, and has  production with a strict quality control process  to ensure the product ‍‌‍‍‌‍‌‍‍‌stability and reliability during production,as

● Incoming Quality Control(IQC): All raw materials received are inspected by IQC.

● In-Process Quality Control(IPQC): During assembly, the production is constantly monitored by IPQC.

● Final Quality Control(FQC): Before loading, a random inspection is done on the finished products by FQC.

Each solar system's production step   has a record, each item with a barcode,for easy backtracking. We care about each quality detail control, saving the after-service cost for you.

Would you like to visit E-CALLING workshop? Click video here

Custmized Service

We've‍‌‍‍‌ been focusing on OEM/ODM services for 16 years in industries ranging from your idea to a high-quality, shelf-ready product. If you have a concept in mind or need comprehensive development assistance, our professional team will take care of the entire process—from PCB design and prototyping to final packaging—ensuring your product meets or exceeds industry standards. Our entire production line operates under internationally recognized quality standards, including ISO 9001, ISO14001, ISO26001, and IATF 16949, etc. We provide compliance consulting services, helping you with the certification processes of major international markets (CE, FCC, UL, etc.) to reduce the risk of market entry. A single point of contact - a product manager - is assigned to your project from start to finish to ensure smooth coordination between different ‍‌‍‍‌teams.

Project workflow chart:

Frequently Asked Questions

 1. What‍‌‍‍‌‍‌‍‍‌ is your Minimum Order Quantity(MOQ) for custom orders?

     The MOQ is generally as low as 500-1000pcs. It depends on the complexity of the customization. We work on different terms with you and can talk about the option for a startup business.

 2. What does your customization service entail?

     We accept OEM, ODM, and product tailoring as the main components for customization.

 3. What is your lead time for production?

     Time to delivery varies with quantity and degree of customization. In general, 35-45 days are required for mass production after sample confirmation.

 4. Would you be able to send us a free sample?

     Usually, we will refund the sample cost when the first batch order placed by the customer.

 5. Can we assign our QC inspector to your factory?

    Of course. We are very supportive of third-party quality inspections and open to them. We consider that it facilitates confidence and quality assurance. You may engage      the services of SGS, BV, etc., or use your own QC representatives.

 6. What shipping methods are available?

     Freight way can be used  based on  priority need, or courier services such as DHL, FedEx, and UPS can be used for the most urgent ‍‌‍‍‌‍‌‍‍‌needs.
